Nimbus-7, also called Nimbus-G, was launched on Oct. 24, 1978, by a Delta rocket from Vandenberg Space Force Base in California and was turned off in 1994 after 16 years of service. This research-and-development satellite served as a stabilized, earth-oriented platform for the testing of advanced systems for sensing and collecting data in the pollution, oceanographic and meteorological disciplines.

Satellite Features

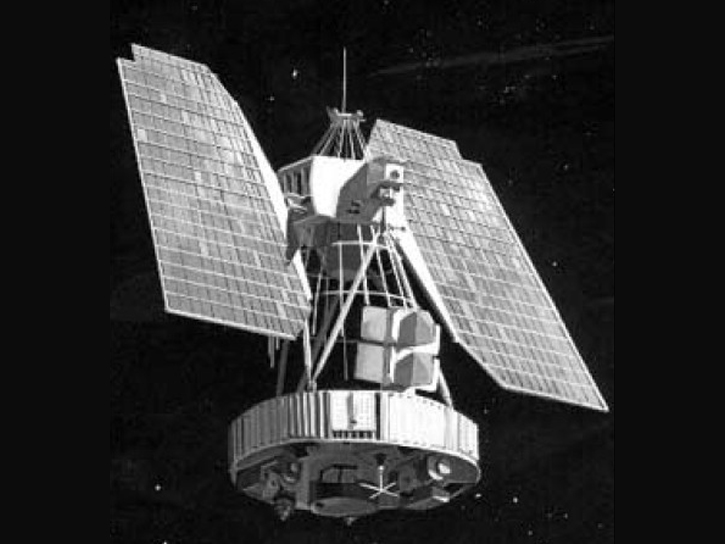

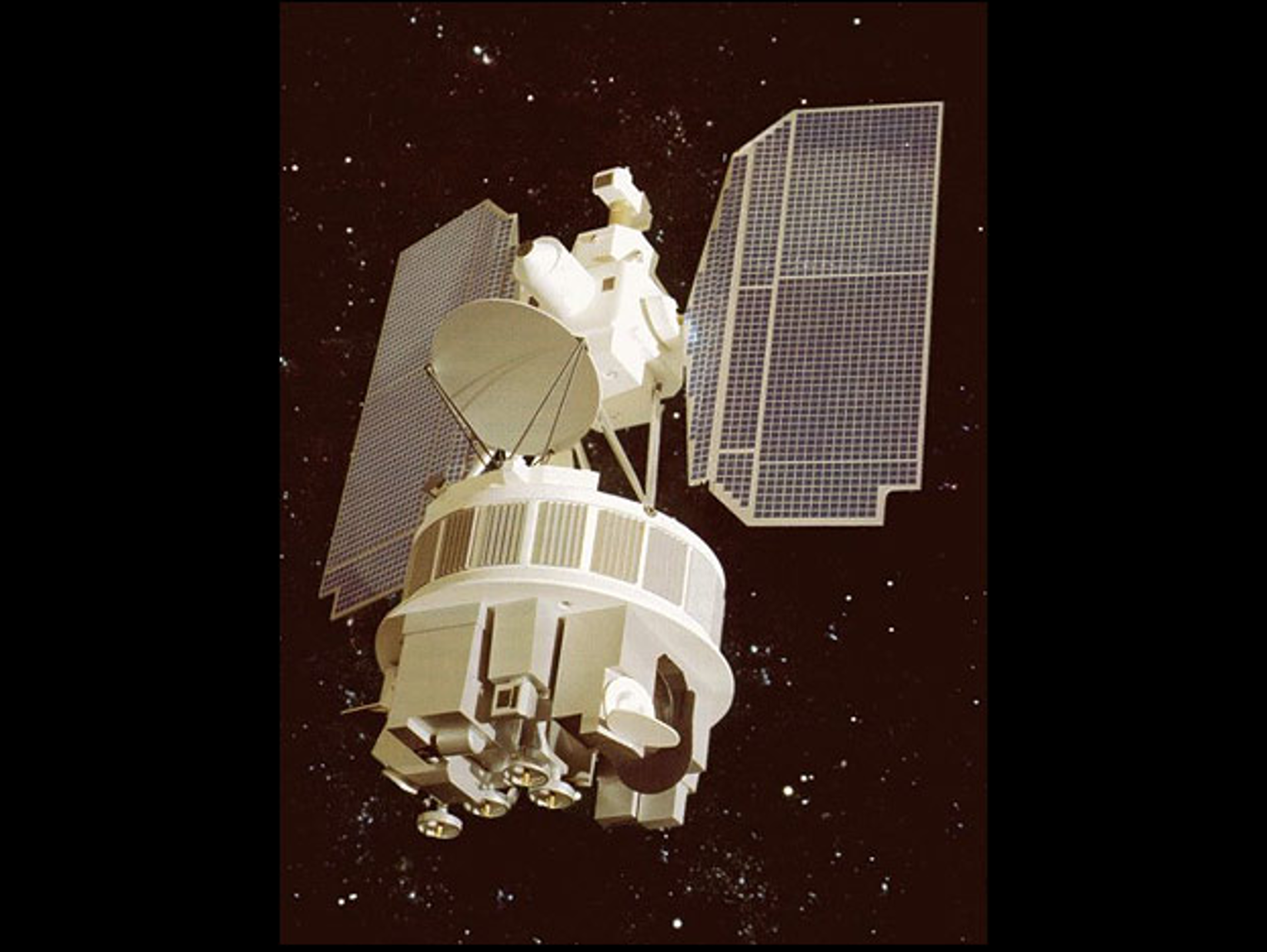

The polar-orbiting spacecraft consisted of three major structures:

1. a hollow torus-shaped sensor mount
2. solar paddles
3. a control housing unit that was connected to the sensor mount by a tripod truss structure

Configured somewhat like an ocean buoy, Nimbus-7 was nearly 3.04 m tall, 1.52 m in diameter at the base, and about 3.96 m wide with solar paddles extended. The sensor mount that formed the satellite base housed the electronics equipment and battery modules.The lower surface of the torus provided mounting space for sensors and antennas. A box-beam structure mounted within the center of the torus provided support for the larger sensor experiments. Mounted on the control housing unit, which was located on top of the spacecraft, were sun sensors, horizon scanners, and a command antenna. The spacecraft spin axis was pointed at the earth. An advanced attitude-control system permitted the spacecraft's orientation to be controlled to within plus or minus 1 deg in all three axes (pitch, roll, and yaw).

Experiments

Eight experiments were selected:

1. Earth Radiation Budget (ERB)
2. Stratospheric Aerosol Measurement II (SAM II)
3. Scanning Multichannel Microwave Radiometer (SMMR)
4. Limb Infrared Monitoring of theStratosphere (LIMS)
5. Stratospheric And Mesospheric Sounder (SAMS)
6. Coastal-Zone Color Scanner (CZCS)
7. SolarBackscatter UV and Total Ozone Mapping Spectrometer (SBUV/TOMS),
8. Temperature-Humidity Infrared Radiometer (THIR)

These sensors were capable of observing several parameters at and below the mesospheric levels.
