Each year, the Sensing Our Planet publication features intriguing research that highlights how scientists are using Earth science data to learn about our planet. Research described in the articles uses data archived and managed by NASA’s Earth Observing System Data and Information System (EOSDIS) Distributed Active Archive Centers (DAACs). These articles are also a resource for learning about science and about the data, for discovering new and interdisciplinary uses of science datasets, and for locating data and education resources.

A few of the 2017 stories feature data distributed by NASA's Land Processes Distributed Active Archive Center (LP DAAC). The data products used are from the Moderate Resolution Imaging Spectroradiometer (MODIS) sensor aboard both the Terra and Aqua platforms.

Drought On the Range

Drought is a topic that is always on the back of a rancher’s mind, as a lack of water can impact the rancher’s herd before they are ready to be sold off as consumables. These times of drought can be observed via in situ ground stations near farms. However, these stations only provide information about their specific point location, and drought factors such as soil moisture can change within a little amount of space near each station. Therefore, researchers are turning to satellite data to see if it can help fill in the gap for drought monitoring. To do this, they tested Soil Moisture Active-Passive (SMAP) data from NASA's National Snow and Ice Data Center Distributed Active Archive Center (NSIDC DAAC) against in situ soil moisture data. First the researchers used MODIS land cover data (MCD12Q1) from the LP DAAC to identify where the most applicable ground stations exist. These are ground stations in areas that contained more than 70% of land cover types related to ranching. Once the researchers had these points, they compared SMAP data, along with land surface temperature data (MOD11A2) from the LP DAAC, with the in situ data. Did these data correlate with the in situ data?

Read "Drought On the Range."

To the Lighthouse

The Great Lakes provide drinking water to 35 million people and hold 20% of the world’s surface fresh water, yet they are still surprisingly understudied. These lakes were once believed to be impervious to climate change due to their large size; however, their levels dropped between 1998 and 2014 to the longest low-level time period over the span of 100 years. Thus, researchers want to learn more about the water cycles of these lakes, particularly how evaporation impacts the lakes, and are using remote sensing data to study them. This study focused on Lake Huron. The authors used geolocation data, cloud optical data, and air and dew point temperature data from NASA's Level-1 and Atmosphere Archive and Distribution System Distributed Active Archive Center (LAADS DAAC), combined with Land Surface Temperature and Emissivity data (MOD11_L2) from the LP DAAC, to estimate evaporation for the entire lake. Do you think the lake experiences more evaporation during the winter or the summer?

Read "To the Lighthouse."

A Spread of Green

Siberia was once a cold large mass of sub-Arctic taiga and the Arctic tundra biomes that were home to small scattered populations. However, the discovery of oil and minerals in the 1900s brought large populations to the area in search of jobs. Researchers found this as an opportune time to use MODIS Normalized Difference Vegetation Index (NDVI) (MOD13Q1) data from the LP DAAC to study how cities and urban heat islands impact taiga and tundra, and the permafrost, or permanently frozen ground, found in these biomes. Continue reading to learn how urban development and climate change are impacting this area.

Read "A Spread of Green."

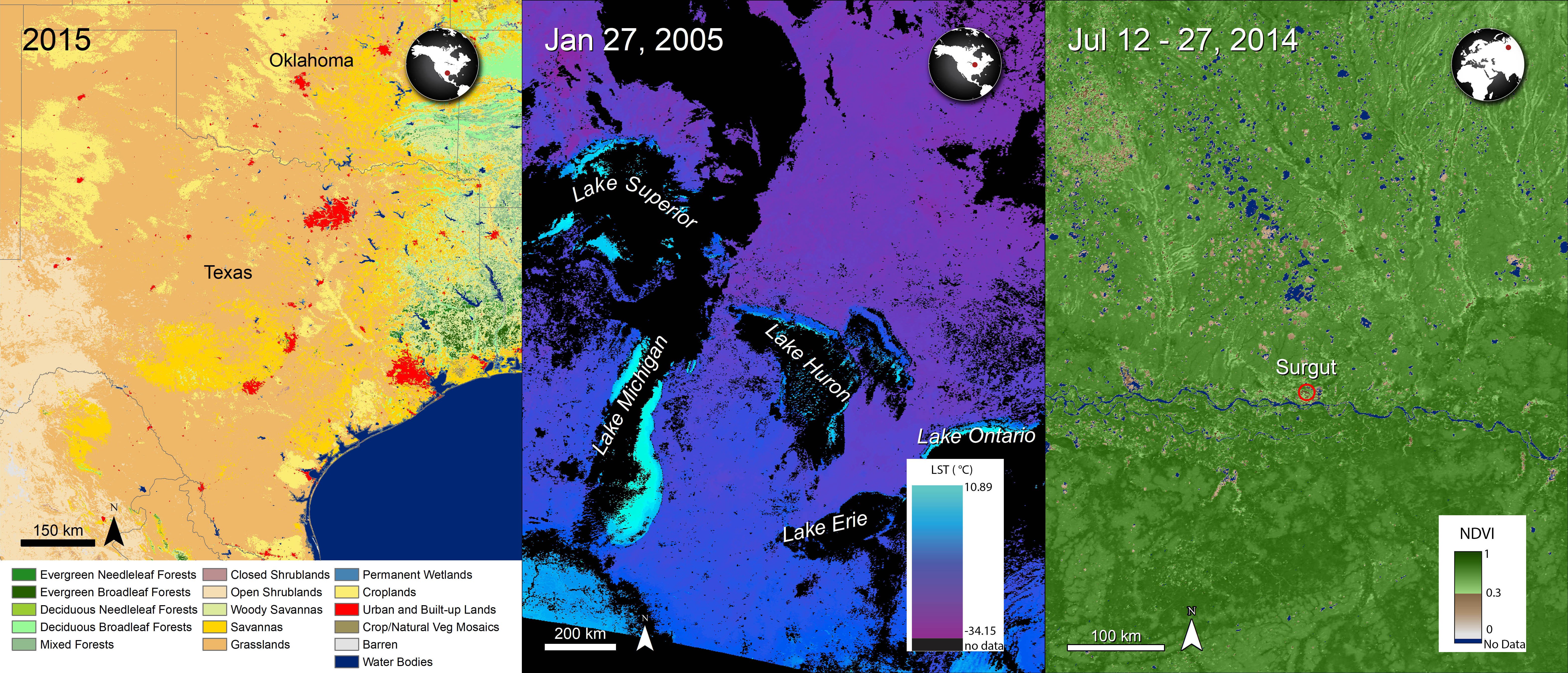

Image Caption

Left image: A combined MODIS land cover image over the US states of Texas and Oklahoma.

Center image: A MODIS land surface temperature image over the Great Lakes, including Lake Huron, the lake studied in this article, during the winter of 2005. Notice how areas near the lake and lake shores are warmer than the land around the lake in the winter.

Right image: An image of Normalized Difference Vegetation Index (NDVI) data over the oil boom town of Surgut, Russia, from a Terra MODIS vegetation indices product during the authors’ study period.

References

Article Reference

Beitler, J., Gautier, A., LeFevre, K., Naranjo, L., and Vizcarra, N., 2017, Sensing our planet—NASA Earth science research features 2017: National Aeronautics and Space Administration (NASA) Earth Observing System Data and Information System (EOSDIS) Snow and Ice Distributed Active Archive Center (DAAC) at the National Snow and Ice Data Center (NSIDC), accessed November 28, 2018.

Imagery References

Granule IDs

Left Image
  • MCD12Q1.A2015001.h08v05.006.2018055062742
  • MCD12Q1.A2015001.h08v06.006.2018055062749
  • MCD12Q1.A2015001.h09v05.006.2018055062825
  • MCD12Q1.A2015001.h09v06.006.2018055062829
  • MCD12Q1.A2015001.h10v05.006.2018055062904
Center Image
  • MOD11_L2.A2005027.1635.006.2015241182321
Right Image
  • MOD13Q1.A2014193.h21v02.006.2015289010428

Details

Last Updated

June 13, 2025

Published

Dec. 19, 2018

Data Center/Project

Land Processes DAAC (LP DAAC)
